Model:

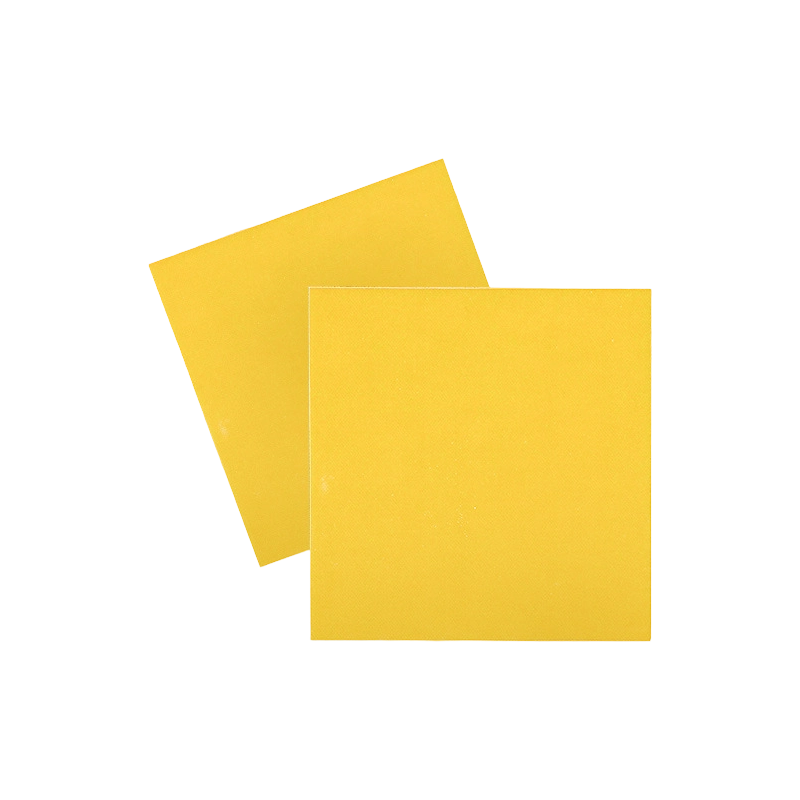

Yellow High-Temperature and High-Pressure Epoxy Resin Board


We specialize in the professional production of epoxy resin boards, including yellow high-temperature and high-pressure epoxy sheets that can be custom-machined to any size or shape. These boards feature excellent insulation performance, ensuring high reliability and safety in electrical and mechanical applications. The material is environmentally friendly, flame-retardant with a V0 rating, and can withstand punching and forming processes without deformation.

Made from premium raw materials, our epoxy resin boards are durable, wear-resistant, and long-lasting, even under extreme conditions. The surface is smooth, free from burrs and black spots, allowing for easy installation and precise fitting in any project.

As a direct factory supplier, we eliminate unnecessary intermediaries to offer competitive prices and flexible customization tailored to customer requirements. With bulk order advantages and professional processing capabilities, our products are widely used in the electrical power industry, mechanical equipment, and other fields that require high insulation, stability, and durability.

Choose our yellow epoxy boards for reliable performance, excellent workmanship, and superior cost efficiency.

Inquiry Now
  • Name Epoxy Board Color Yellow
    Thickness 0.3-200MM Origin Domestic
    Features This product is made from electrical-grade fiberglass cloth and alkali-free cloth impregnated with epoxy resin, and processed by baking and hot pressing. The laminate has high mechanical and dielectric properties, good heat resistance and moisture resistance, and good machinability. The heat resistance class is Class B (155°C). It is suitable for use as insulating structural parts in motors and electrical appliances, and can be used in humid environments and transformer oil. The bending strength is ≥200KG at room temperature, 100KG at high temperature, the breakdown voltage is not less than 100KV under normal conditions, and not less than 20KV after being damp.
-->
