Heat-Resistant Epoxy Resin Board Fails Under Thermal Cycling

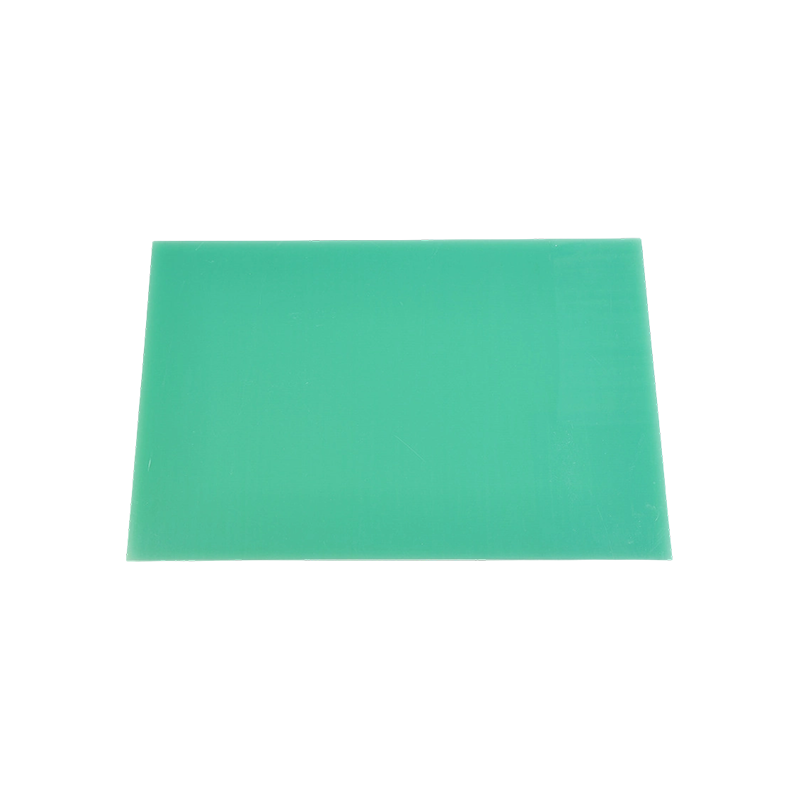

A heat-resistant epoxy resin board is bought for one reason: it stays stiff and insulating at temperatures that soften standard laminates. Buyers install these boards in burn-in fixtures and power device mounts. They check the glass transition temperature on the data sheet, see 180°C, and approve the order. Six months later, the same board cracks around mounting holes. The flexural strength drops by half. The dielectric loss rises. The heat-resistant epoxy resin board that survives a single high-temperature test often fails under repeated thermal cycling, and the cycling is what happens in real use, not the single peak number that sold the material.

Glass Transition Temperature Misleads More Than It Informs

The Tg marks where epoxy changes from glassy to rubbery. Buyers treat it as the big use temperature. The board softens well below that point. At 150°C, a 180°C-Tg board already loses 40 percent of its room-temperature modulus. The surface deforms under pin pressure. Alignment drifts. The board still measures flat, but it no longer holds position.

Four factors determine real high-temperature performance:

• Cross-link density of the cured network, because tighter structures resist molecular motion longer
• Hardener chemistry, because aromatic types create more thermally stable bonds than aliphatic alternatives
• Absence of flexibilizers, which lower the effective softening point even when Tg tests show high numbers
• Post-cure completeness, because unreacted groups continue to react at service temperature and shrink the panel

A heat-resistant epoxy resin board manufacturer that controls these four factors delivers panels that endure thousands of cycles. One that chases a high Tg number without addressing hardener or post-cure ships boards that fail before the first maintenance interval.

Thermal Cycling Cracks What Heat Alone Does Not

Static heat causes gradual degradation. Cycling causes fatigue. The glass cloth expands faster than the epoxy. The copper layer, if present, expands at a third rate. Each ramp from 25°C to 180°C and back pulls the interfaces apart. Micro-cracks appear at drilled holes after 300 cycles. After 800 cycles, those cracks connect and the board loses structural integrity.

Manufacturers who test only static heat exposure report numbers that look impressive. Manufacturers who run thermal cycle tests on every new formulation catch the fatigue problem early. The difference shows up in return rates, not in promotional literature.

Post-Cure Stabilizes What the Press Leaves Reactive

Panels come out of the press with unreacted epoxy groups. A heat-resistant epoxy resin board manufacturer that skips post-cure ships panels that pass initial Tg checks. At elevated temperatures, those groups react. The panel shrinks. The shrinkage creates internal stress that cracks the board from within.

Three tests confirm whether post-cure finished the job:

• Differential scanning calorimetry showing no residual exotherm above the cure temperature
• Thermomechanical analysis measuring expansion coefficient stability across the Tg region
• Flexural strength retention after 100 hours at 180°C in circulating air

A heat-resistant epoxy resin board manufacturer that runs these three tests ships panels that stay dimensionally stable. One that skips them ships panels that change shape in the customer's oven.

Oxidation Eats the Surface Before the Bulk Fails

Above 150°C, oxygen reacts with the epoxy surface. The oxidized layer turns brittle. Micro-cracks form. These cracks lower the dielectric strength and create tracking paths. A heat-resistant epoxy resin board that passes bulk flexural tests can still fail surface breakdown tests because the skin has degraded.

Resins with bisphenol-F or novolac backbones oxidize slower than bisphenol-A types. Oxidation stabilizers slow the reaction further but do not stop it entirely. Manufacturers who test only bulk properties miss the failure mode that shows up first on the assembly floor.

Hole Quality Decides How Long the Board Lasts in Service

Mounting holes carry the mechanical load. Under thermal cycling, the hole wall expands and contracts. Stress concentrates at the wall. Cracks start there and propagate outward. A sharp drill with correct feed rate produces clean walls. A worn drill tears glass fibers and leaves micro-cracks that grow under every temperature cycle.

A heat-resistant epoxy resin board manufacturer that controls drilling parameters with the same attention as press parameters ships boards that hold fixtures securely through the equipment's service life. One that treats hole drilling as an afterthought ships boards that crack at the fastener and get replaced early. The resin provides the thermal resistance. The hole determines whether that resistance stays useful.
