Model:

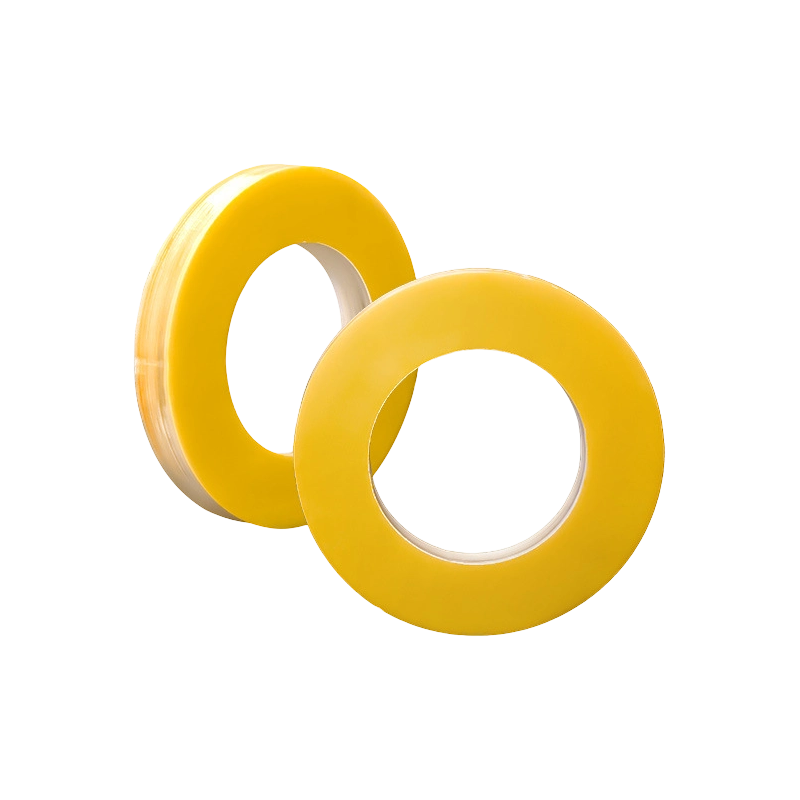

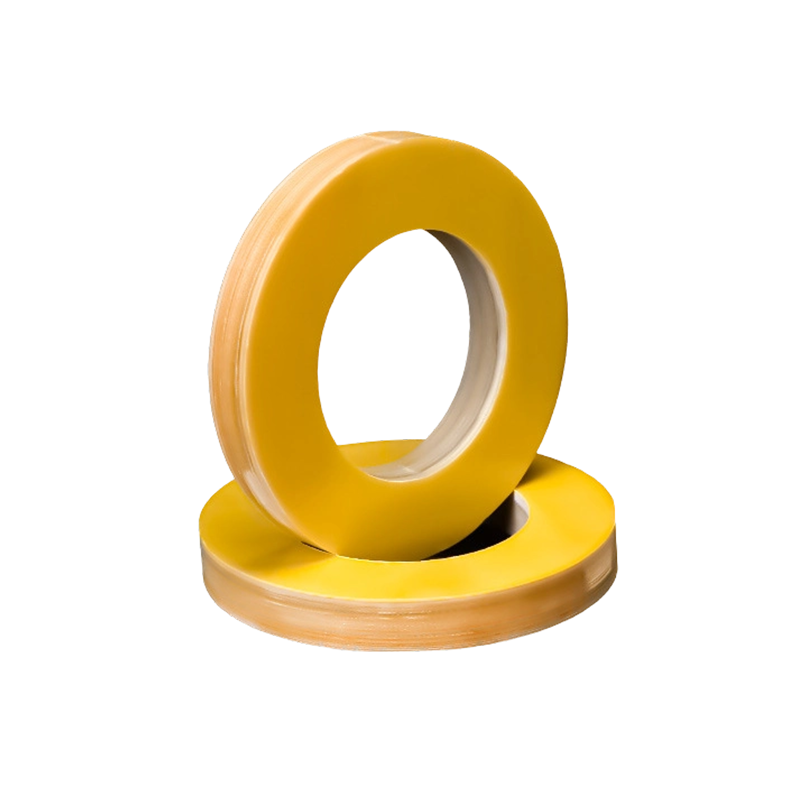

3240 Yellow Insulating Epoxy Board

The 3240 yellow insulating epoxy board is a reliable material designed for applications in the electric power industry and mechanical equipment. It provides stable electrical insulation and mechanical strength, making it suitable for various industrial environments. The board can be processed into different shapes and sizes according to project requirements, offering flexibility for customized applications.

High-Quality Material: Produced using selected raw materials, the board is resistant to wear and offers a long service life while maintaining stable performance under normal operating conditions.
Non-Standard Customization: The surface is smooth, free from burrs and black spots, allowing easy installation and precise fitting. Custom machining and processing are available to meet specific project needs.
Factory Direct Supply: Direct production reduces intermediary costs and provides reasonable pricing with flexible customization options. Bulk orders are handled efficiently while maintaining consistent quality.
Durable and Reliable: Maintains insulation and mechanical properties over time, and can be easily processed, shaped, and assembled according to industrial requirements.

This 3240 yellow epoxy board provides dependable insulation, durability, and adaptability for a variety of electrical and mechanical applications.

Inquiry Now

PREV: 3240 Grade A Yellow Magnetic Ring Inductor Base Epoxy Board

NEXT: No next article

Specification
Tell Us Your Message

Name	Epoxy Board	Color	Yellow
Thickness	0.3-200MM	Origin	Domestic
Features	This product is made from electrical-grade fiberglass cloth and alkali-free cloth impregnated with epoxy resin, and processed by baking and hot pressing. The laminate has high mechanical and dielectric properties, good heat resistance and moisture resistance, and good machinability. The heat resistance class is Class B (155°C). It is suitable for use as insulating structural parts in motors and electrical appliances, and can be used in humid environments and transformer oil. The bending strength is ≥200KG at room temperature, 100KG at high temperature, the breakdown voltage is not less than 100KV under normal conditions, and not less than 20KV after being damp.
