Model:

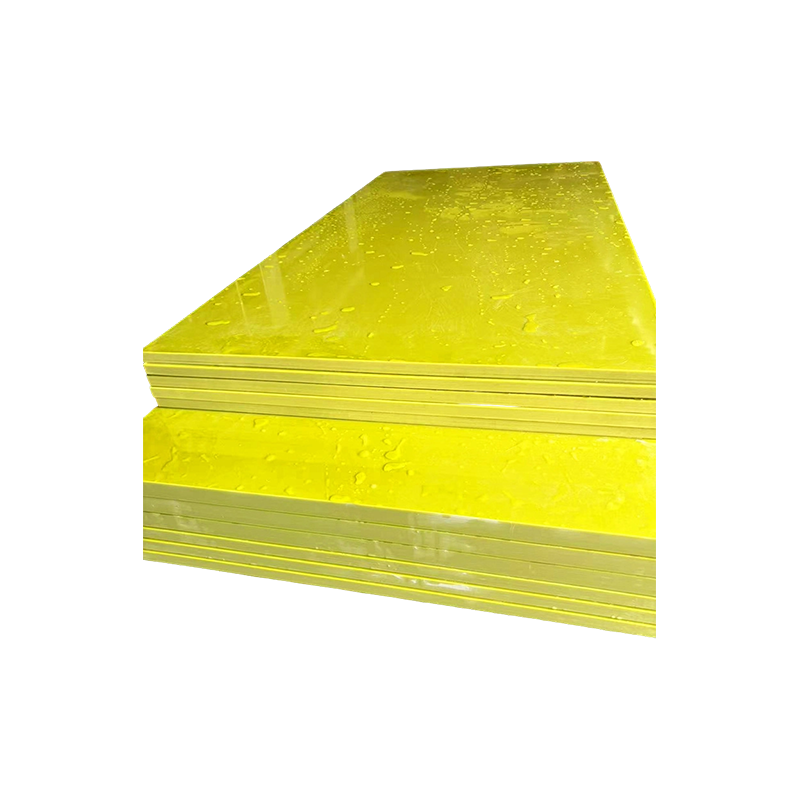

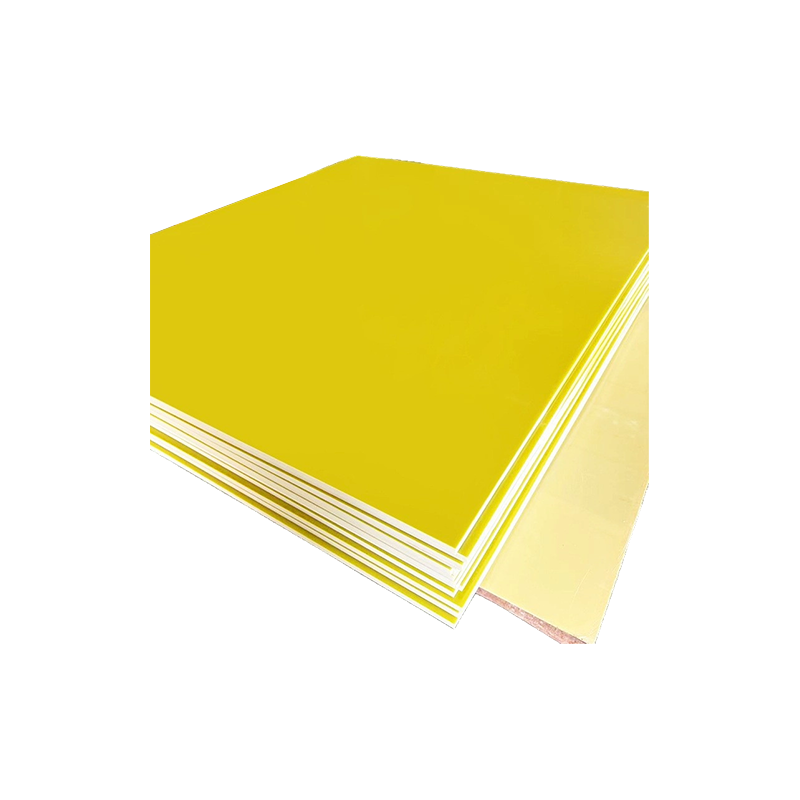

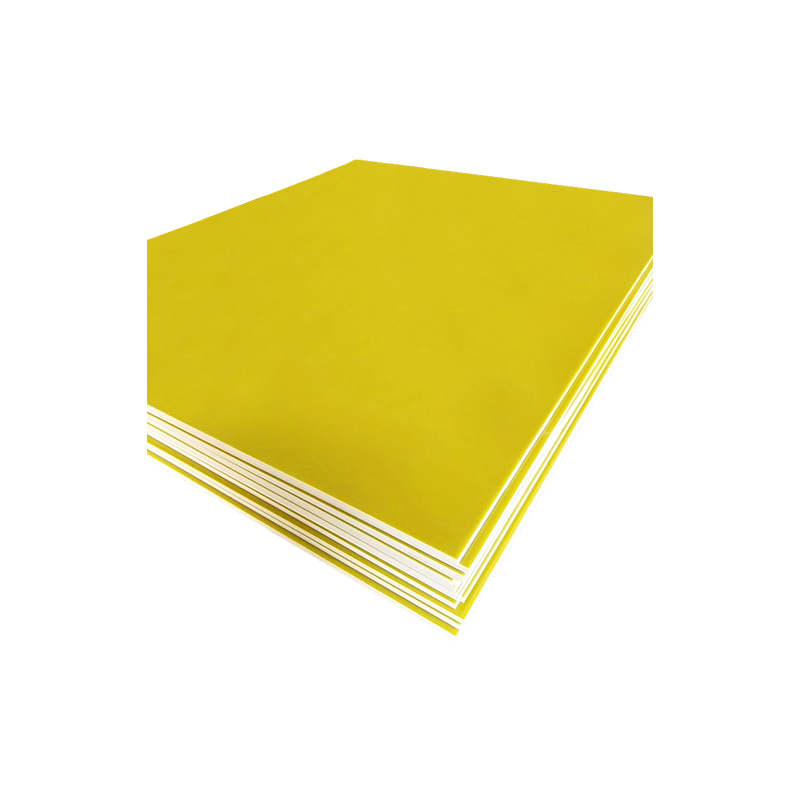

Heat-Resistant Epoxy Resin Board


The heat-resistant epoxy resin board is a reliable insulating material designed for use in industries such as electrical equipment, electronics, oil and gas transportation, power generation, heavy industry, construction, and new energy transportation. It provides consistent mechanical strength and excellent electrical insulation under high-temperature conditions. The board is suitable for diverse industrial applications and can be customized to meet specific project requirements. Produced by a direct manufacturer, it ensures quality, processability, and efficiency for bulk orders.

High-Quality Material: Manufactured from selected raw materials, the board is resistant to wear and provides a long service life while maintaining stable performance.
Non-Standard Customization: The surface is smooth, free from burrs or black spots, allowing easy installation and precise fitting according to project specifications. Custom processing is supported to meet various industrial needs.
Factory Direct Supply: Direct manufacturing reduces intermediary costs and provides competitive pricing, with the ability to handle bulk orders efficiently.
Durable and Processable: Maintains insulation and mechanical properties under high-temperature conditions, and can be easily cut, shaped, and assembled.

This heat-resistant epoxy resin board delivers reliable insulation, durability, and adaptability for a wide range of industrial applications.

Inquiry Now
  • Name Epoxy Board Color Yellow
    Thickness 0.3-200MM Origin Domestic
    Features This product is made from electrical-grade fiberglass cloth and alkali-free cloth impregnated with epoxy resin, and processed by baking and hot pressing. The laminate has high mechanical and dielectric properties, good heat resistance and moisture resistance, and good machinability. The heat resistance class is Class B (155°C). It is suitable for use as insulating structural parts in motors and electrical appliances, and can be used in humid environments and transformer oil. The bending strength is ≥200KG at room temperature, 100KG at high temperature, the breakdown voltage is not less than 100KV under normal conditions, and not less than 20KV after being damp.
-->
