Panelized Epoxy Board Factory: The Sheet That Becomes the Circuit Board

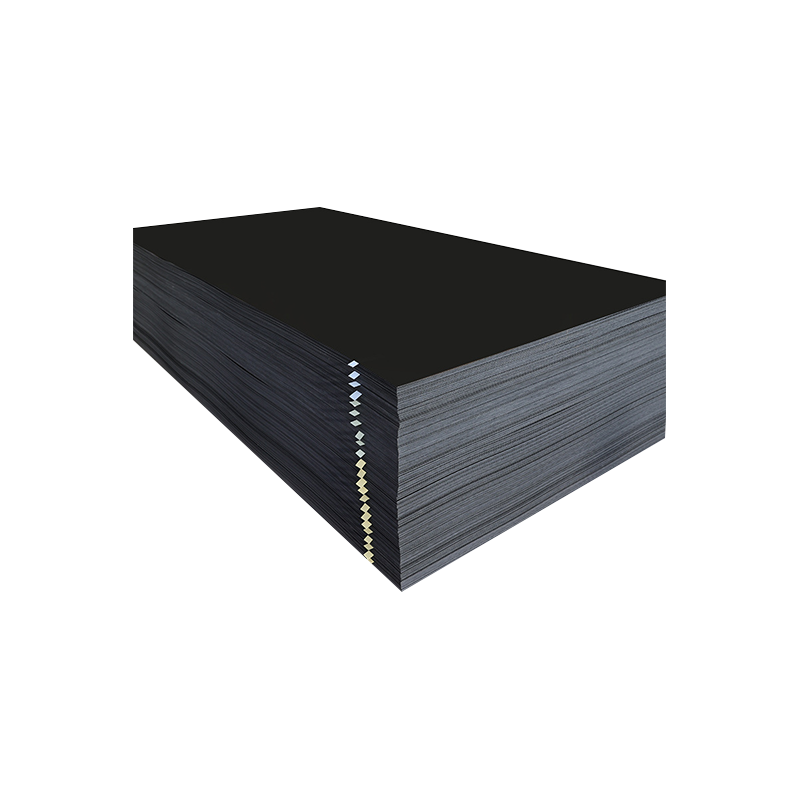

A printed circuit board is copper traces on a rigid base. The base is the epoxy board. It holds the copper, insulates the traces, and stays flat through the heat of soldering. A panelized epoxy board factory produces this material in standard sheet sizes that PCB fabricators feed into their drilling, plating, and etching lines. The panel is the starting point. Everything the finished board becomes depends on it.

The Sandwich and the Press

The board is built in layers. Woven glass cloth is saturated with epoxy resin, dried into a prepreg sheet, then stacked with copper foil on one or both sides. The stack goes into a hydraulic press. Heat cures the resin. Pressure squeezes out the air and bonds the layers into one dense sheet.

A panelized epoxy board factory controls the press cycle: the temperature ramp, the pressure, and the dwell time. Incomplete cure leaves the center of a thick panel soft. The board delaminates in the reflow oven later, and the fabricator has no way to fix it.

The Tg Number That Decides the Solder Process

Glass transition temperature is where the epoxy softens from rigid to rubbery. Standard FR-4 sits around 130 to 140 degrees Celsius. Lead-free solder reflows 30 to 40 degrees hotter than the old tin-lead process. A board with a low Tg delaminates under lead-free reflow.

A panelized epoxy board factory offers mid-Tg around 150 and high-Tg above 170 for automotive, industrial, and lead-free work. The number on the datasheet has to match the thermal reality on the line. An overstated Tg becomes blistered boards and a fabricator looking for a new supplier.

Flatness and Thickness Control

A panel that arrives with a bow or twist causes registration problems at the solder paste printer and the pick-and-place machine. A panelized epoxy board factory controls residual stress during lamination so panels lie flat off the press.

Thickness tolerance matters for controlled-impedance traces. A variation of a few microns shifts the impedance and degrades signal integrity. The factory holds thickness across the full panel surface so the fabricator can rely on the published value.

Copper and the Bond

The copper foil is bonded to the epoxy under heat and pressure. Peel strength is the force needed to pull the copper away from the laminate. A board that goes through reflow and rework has to hold its pads.

A panelized epoxy board factory uses electrodeposited copper with a treated adhesion surface. Low-profile foil is smoother and allows finer traces with less undercut for high-density designs.

Here is what a panelized epoxy board factory needs to deliver:

• Standard panel sizes matched to fabrication line tooling
• Thickness tolerance held across the full sheet
• Tg rating certified for the intended solder process
• Copper peel strength that survives reflow and rework
• Low moisture absorption and controlled packaging
• Dielectric data at relevant frequencies

The Defects That Hide Until the Oven

Blistering and delamination appear after the board hits reflow temperature. Moisture or contamination trapped during lamination expands and separates the layers. A panelized epoxy board factory that controls prepreg storage and lamination pressure prevents these latent failures.

Measling, the tiny white spots in the laminate, comes from the same root cause. The spots are cosmetic until they are not. In high-humidity service, they become leakage paths.

The Fabricator's Perspective

A PCB fabricator runs hundreds of panels a day. The material has to behave the same way every time. The drill has to cut clean holes. The etch has to remove copper evenly. The solder mask has to adhere. The panel has to stay flat through the process.

A fabricator that switches panel suppliers to save a few percent risks the entire line. A batch with high moisture content blisters in the reflow oven and every board is scrap. A panelized epoxy board factory that ships consistent material is worth more than the price difference.

The electronics industry depends on the panel. The panel depends on the factory. A panelized epoxy board factory that controls the formulation, the press, the thickness, and the moisture ships material the fabricator can trust. The boards that come off the line go into products that work.
