Model:

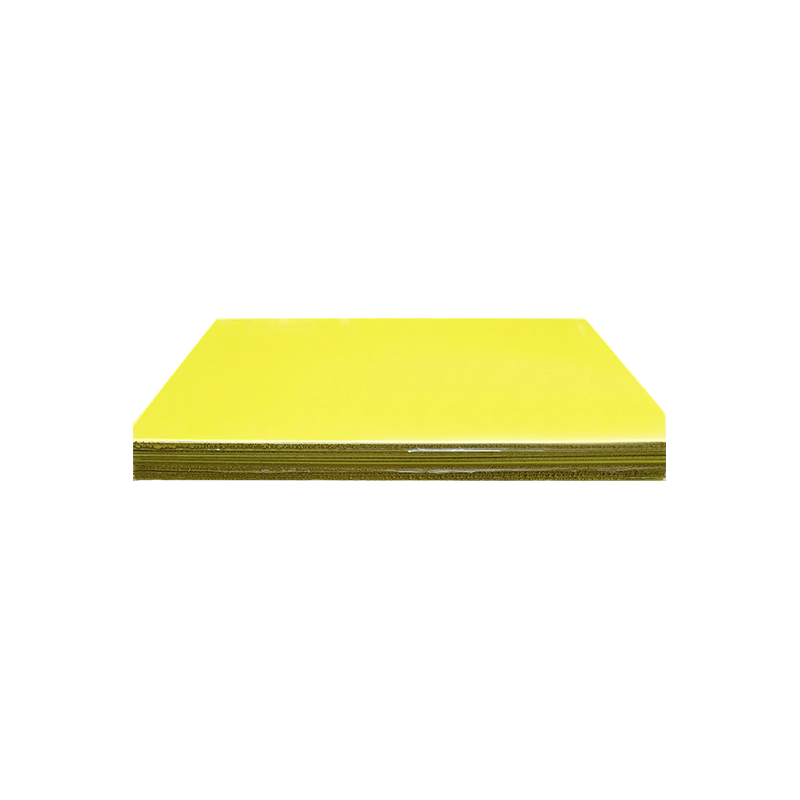

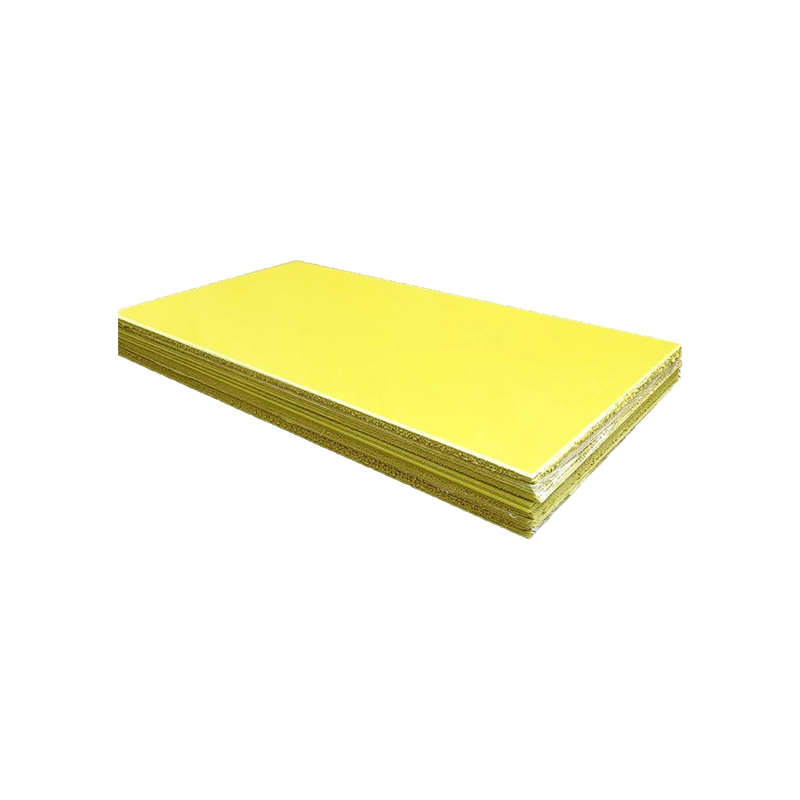

G10 Yellow Epoxy Resin Board

The G10 yellow epoxy resin board is a durable insulating material suitable for a wide range of industries, including electrical equipment, electronics, oil and gas transportation, power generation, heavy industry, construction, and new energy transportation. It provides reliable performance in demanding environments, combining high mechanical strength with excellent electrical insulation. The board is suitable for applications requiring stable dielectric properties and resistance to electrical stress.

Heat Resistance: Maintains stability and mechanical integrity under elevated temperatures, supporting long-term use in various industrial settings.
Strong Insulation Performance: Provides reliable electrical insulation, helping to reduce the risk of current leakage and improve operational safety.
Superior Dielectric Properties: Features high dielectric strength, resistance to surface leakage, and good arc resistance, making it suitable for both electrical insulation and structural components.
Processable and Reliable: Easy to machine, cut, and install, while maintaining a smooth surface and consistent quality for industrial applications.

This G10 yellow epoxy resin board offers dependable insulation, mechanical strength, and durability across a variety of technical and industrial environments.

Inquiry Now

PREV: G10 Green Thermal Insulation Epoxy Resin Board

NEXT: No next article

Specification
Tell Us Your Message

Name	Epoxy Board
Color	Yellow
Thickness	0.3-200MM
Origin	Domestic
Features	This product is made from electrical-grade fiberglass cloth and alkali-free cloth impregnated with epoxy resin, then processing it via baking and hot pressing. The laminate has high mechanical and dielectric properties, good heat resistance and moisture resistance, as well as excellent machinability. Its heat resistance class is Class B (155°C). It is suitable for use as insulating structural components in motors and electrical appliances, and can be applied in humid environments and transformer oil. The bending strength is ≥200KG at room temperature and 100KG at high temperature; the breakdown voltage is no less than 100KV under normal conditions and no less than 20KV after dampening.
