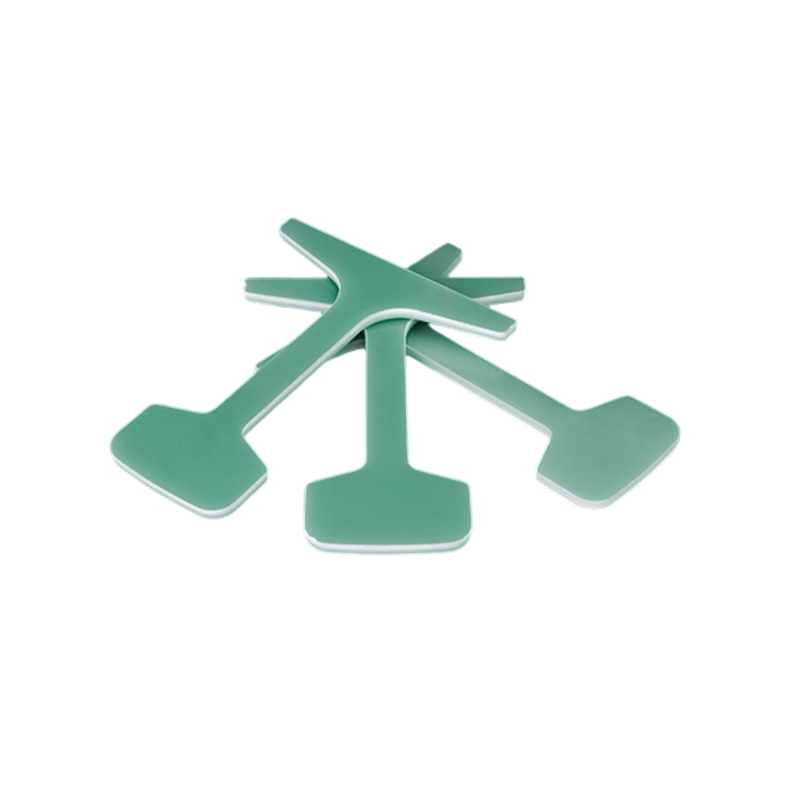

FR4 Green Fiberglass Epoxy Board

FR4 Green Fiberglass Epoxy Board Industry Knowledge

What Is FR4 Epoxy Fiberglass Sheet Used For?

FR4 epoxy fiberglass sheet is primarily used as an electrical insulation material and structural component in equipment that requires high dielectric strength, dimensional stability, and mechanical durability.

The material is made by laminating woven fiberglass cloth with epoxy resin under high temperature and pressure. This manufacturing process produces a rigid sheet with excellent electrical insulation properties and strong resistance to heat, moisture, and chemicals.

Typical applications include:

• Electrical insulation components
• Printed circuit board substrates
• Transformer insulation structures
• Motor insulation parts
• Mechanical fixtures and jigs
• Industrial electrical panels

Because FR4 epoxy sheets maintain their strength and insulation even under mechanical stress, they are particularly suitable for power industry equipment and heavy-duty electrical devices.

FR4 Epoxy Board Material Structure

The structure of an FR4 epoxy board determines its superior performance. The material is a composite built from two primary components:

This combination results in a board that offers both electrical insulation and mechanical reliability.

Unlike many plastics, FR4 materials maintain stable performance across a wide temperature range, making them ideal for industrial environments.

Key Features of FR4 Green Fiberglass Epoxy Board

One of the most recognizable products in this category is the FR4 green fiberglass epoxy board, which is widely used for insulation and structural support in electrical systems.

1. Excellent Electrical Insulation

FR4 epoxy fiberglass sheets are designed for applications where high dielectric strength is essential. They provide stable insulation even under high voltage conditions.

Key insulation advantages include:

• High dielectric strength
• Low electrical conductivity
• Stable insulation performance under humidity
• Reliable long-term operation

These properties make FR4 materials a trusted choice in electrical power systems.

2. High Mechanical Strength

The fiberglass reinforcement provides strong mechanical properties, allowing the boards to withstand machining, drilling, punching, and structural loads.

Mechanical advantages include:

• High bending strength
• Impact resistance
• Wear resistance
• Long service life

This allows the material to be used not only as insulation but also as mechanical support structures in equipment.

3. V0 Flame-Retardant Performance

Most industrial FR4 epoxy boards meet UL94 V0 flame-retardant standards, meaning the material will self-extinguish quickly if exposed to flame.

This property is extremely important for:

• Electrical cabinets
• Industrial control systems
• Power distribution equipment
• PCB manufacturing

Flame retardancy improves safety and reduces the risk of fire spreading within electrical systems.

4. Smooth Surface and Precision Machining

High-quality FR4 epoxy fiberglass sheets are produced with smooth, uniform surfaces free from burrs, black spots, or structural defects.

This ensures:

• Precise installation
• Better bonding performance
• Accurate CNC machining
• Clean drilling and punching

For manufacturers producing insulation components, this consistency is critical for maintaining tight tolerances and reliable product performance.

Comparison of FR4 Epoxy Board and Epoxy Glass Board

In many industrial contexts, the terms FR4 Epoxy Board, FR4 Epoxy Fiberglass Sheet, and Epoxy Glass Board are used interchangeably. However, subtle distinctions depend on industry usage.

Although terminology varies, these materials share the same core structure and performance advantages.
