3240 Epoxy Board Manufacturer: The Insulation Behind the Electrical Grid

Switchgear cabinets, transformer coils, motor windings. These systems run on current and depend on something non-conductive standing between live parts and grounded metal. A 3240 epoxy board is that barrier. Glass cloth soaked in epoxy resin, pressed under heat into rigid sheets, then machined into busbar supports, terminal boards, and arc barriers. A 3240 epoxy board manufacturer supplies the electrical industry with a material that insulates, supports, and survives operating temperatures that soften lesser laminates.

Glass Cloth and Epoxy Under Heat and Pressure

The number 3240 comes from a Chinese standard that maps roughly to NEMA G10. The base is woven glass cloth. The binder is epoxy resin. Layers of resin-impregnated cloth stack up and go into a hydraulic press. Heat cures the epoxy. Pressure squeezes out voids. The result is a dense, rigid laminate that machines cleanly and insulates reliably.

Sheet thickness ranges from half a millimeter for slot liners to fifty millimeters for structural switchgear components. A 3240 epoxy board manufacturer controls the resin-to-glass ratio through the pressing cycle. Too much resin makes the sheet brittle. Too little leaves dry glass fibers that absorb moisture and lose insulation resistance. The right balance produces a board that drills without delaminating and holds threads under torque.

The operating temperature rating sits at Class B or Class F. That means the material holds its mechanical and electrical properties at 130 to 155 degrees Celsius. Transformers run hot. Switchgear runs warm. A 3240 epoxy board specified for the correct temperature class stays rigid and insulates rather than softening and creeping under load.

Here is what the material needs to deliver:

• Woven glass cloth with controlled epoxy content, pressed void-free
• Thickness from 0.5 to 50 millimeters and beyond
• Temperature rating of Class B or F for hot-running equipment
• Flexural and compressive strength for load-bearing insulation
• Clean machinability without edge chipping or internal delamination

Machining Busbars and Barriers from Sheet Stock

A 3240 sheet leaves the press as a flat panel. The electrical equipment maker cuts, drills, and mills it into finished insulation components. The material machines with standard carbide tooling, but the glass cloth is abrasive. Tool wear is higher than with paper-based laminates.

Dust control during machining matters. Glass fiber and cured epoxy dust irritates skin and lungs. A 3240 epoxy board manufacturer that supplies sheet cut to near-net size reduces the machining burden on the end user. Tapped holes in 3240 hold threads because the glass reinforcement prevents the epoxy from crumbling around the fastener.

Where Water and Voltage Test the Material

Surface tracking is the slow failure mode. Dust and moisture settle on insulation surfaces inside enclosures. Over time, a conductive path forms. Current tracks across the surface, carbonizes the epoxy, and eventually creates a short circuit. A 3240 epoxy board with high comparative tracking index resists this degradation.

Moisture absorption is the other silent threat. Epoxy absorbs less water than phenolic or paper laminates, but it is not zero. A 3240 epoxy board manufacturer that post-cures the laminate after pressing drives the epoxy crosslinking to completion. Lower moisture pickup means more stable insulation resistance in humid environments and outdoor enclosures.

What Separates a Sheet That Lasts

The center of a thick sheet cures slower than the surface. A 3240 epoxy board manufacturer that ramps press temperature correctly and holds dwell time long enough cures the epoxy through the full thickness. A board that looks cured on the outside but is under-cured at the core delaminates under thermal cycling or loses dielectric strength when hot.

The glass cloth finish affects resin adhesion. A 3240 epoxy board manufacturer sourcing cloth with the correct silane treatment for epoxy gets a stronger bond between fiber and resin. A weak bond shows up as fiber pullout during drilling and moisture wicking along exposed glass fibers at the machined edges.

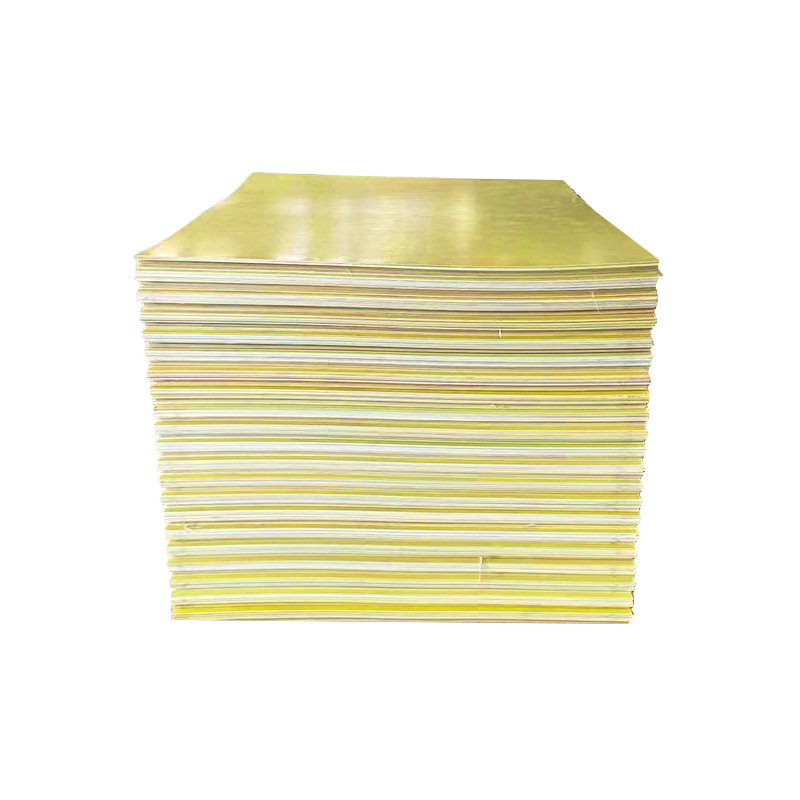

A 3240 epoxy board sits inside equipment that keeps the lights on. It insulates busbars. It supports coils. It blocks arcs. The sheet itself is unglamorous. A brownish-green rectangle on a pallet. But every electrical system that runs on voltage depends on something non-conductive staying that way. Choose a manufacturer that presses uniform laminate, cures it through the full thickness, and certifies the electrical and mechanical numbers. The insulation will hold. That is the only acceptable result.
