Model:

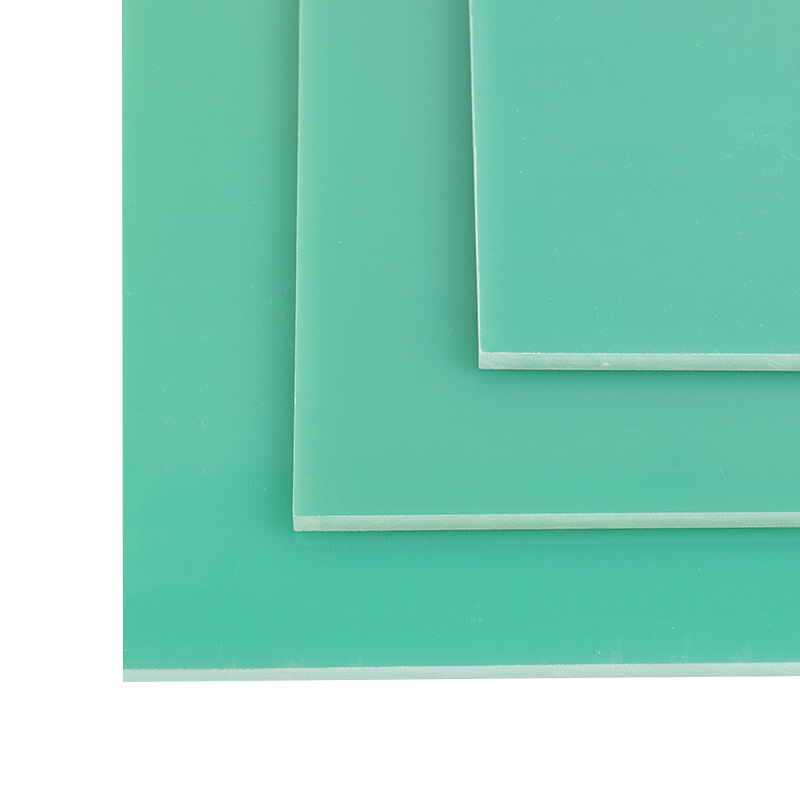

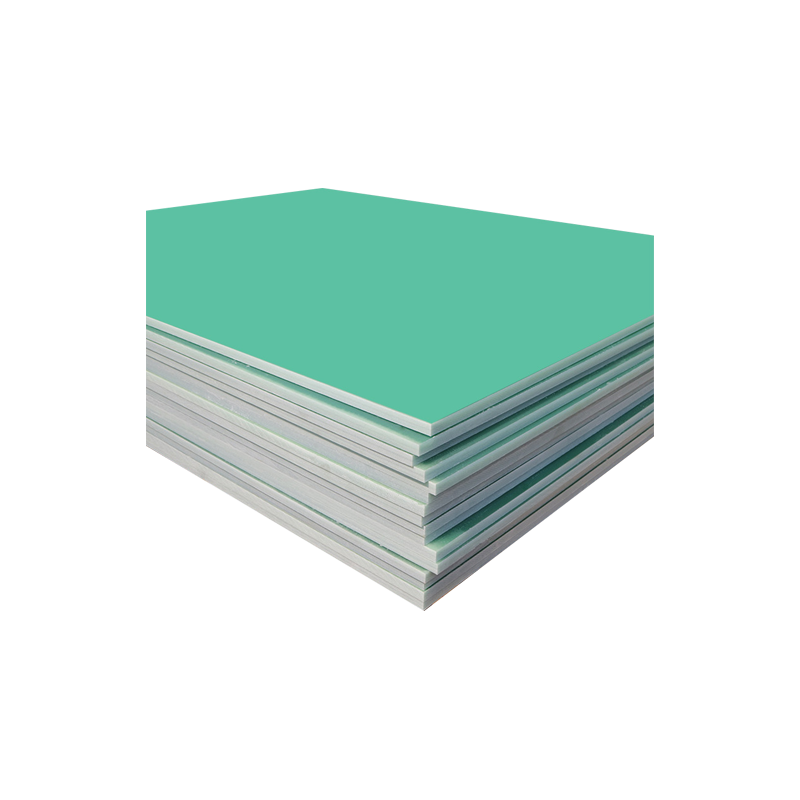

G10 Green Thermal Insulation Epoxy Resin Board

The G10 green heat-resistant epoxy resin board is a versatile insulating material used in a wide range of industries, including electrical equipment, electronics, oil and gas transportation, power generation, heavy industry, construction, and new energy transportation. Produced by a direct manufacturer, the board supports custom processing to meet specific project requirements. It combines mechanical strength, heat resistance, and excellent electrical insulation properties, making it suitable for demanding industrial applications. The board is available in a complete range of specifications, ensuring consistent quality and adaptability for different uses.

Support for Customization: Products can be processed and machined according to your requirements, providing flexibility for various industrial applications.
Premium Material: Manufactured using selected raw materials for durability and long service life, ensuring resistance to wear and stable performance.
High Temperature Resistance: Maintains mechanical stability and electrical properties under elevated temperatures.
Strong Insulation Performance: Provides reliable electrical insulation, high dielectric strength, resistance to surface leakage, and arc resistance.
Source Manufacturer: Direct supply ensures consistent quality, complete specifications, and the ability to handle bulk orders efficiently.

This G10 green epoxy resin board offers reliable insulation, durability, and adaptability for a wide range of industrial environments.

Inquiry Now

PREV: Heat-Resistant Epoxy Resin Board

NEXT: G10 Yellow Epoxy Resin Board

Specification
Tell Us Your Message

Name	Epoxy Board	Color	Green
Thickness	0.3-200MM	Origin	Domestic
Features	This product is made from electrical-grade fiberglass cloth and alkali-free cloth impregnated with epoxy resin, and processed by baking and hot pressing. The laminate has high mechanical and dielectric properties, good heat resistance and moisture resistance, and good machinability. The heat resistance class is Class B (155°C). It is suitable for use as insulating structural parts in motors and electrical appliances, and can be used in humid environments and transformer oil. The bending strength is ≥200KG at room temperature, 100KG at high temperature, the breakdown voltage is not less than 100KV under normal conditions, and not less than 20KV after being damp.
